Series M
Key Parameter
| Pixel pitch (mm) | P2.5/P3.9/P6.25/P10 |
|---|---|
| Module dimensions (mm) | 125×1000/250×1000/250×1175/250×1000 |
| Transparency Rate | 70%~90% |
| Brightness(cd/m²) | 2000 ~ 5000 |
Product advantages
Ultra-high transparency
No splicing structure, full screen transparent invisible
Spatial floating image
3D Holography, Spatial floating image
Hd display quality

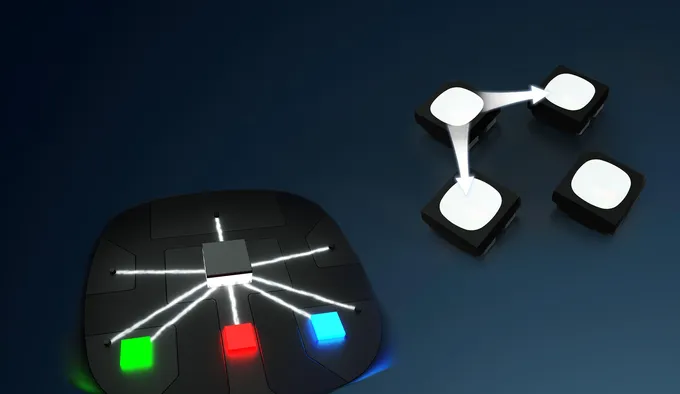

Horizontal and vertical pixels equal spacing, Light/Driver Integrated, Picture Grayscale 16 bit
High brightness and contrast
High brightness 5000cd/㎡
High contrast ratio 9000:1
High contrast ratio 9000:1

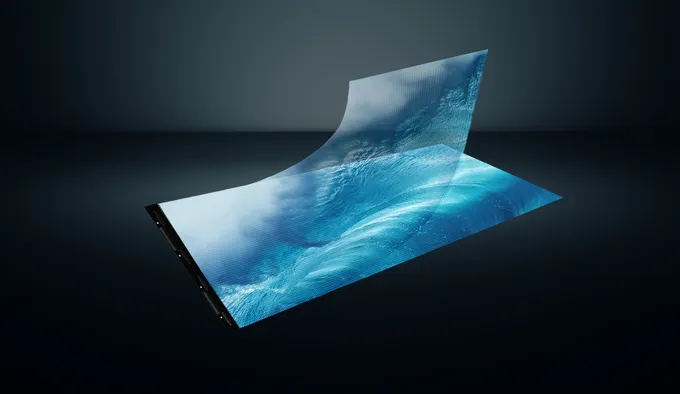

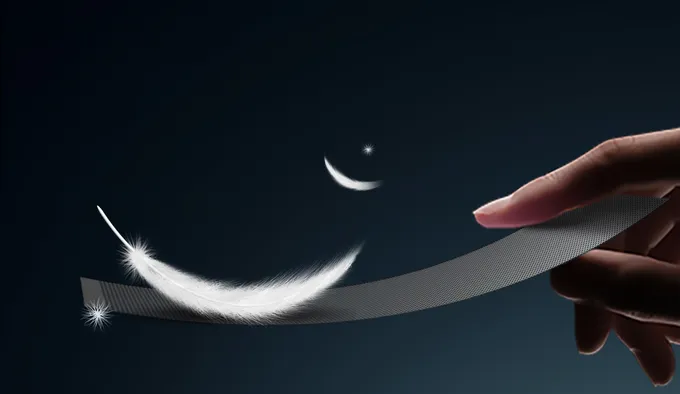

Pliable、Flexional

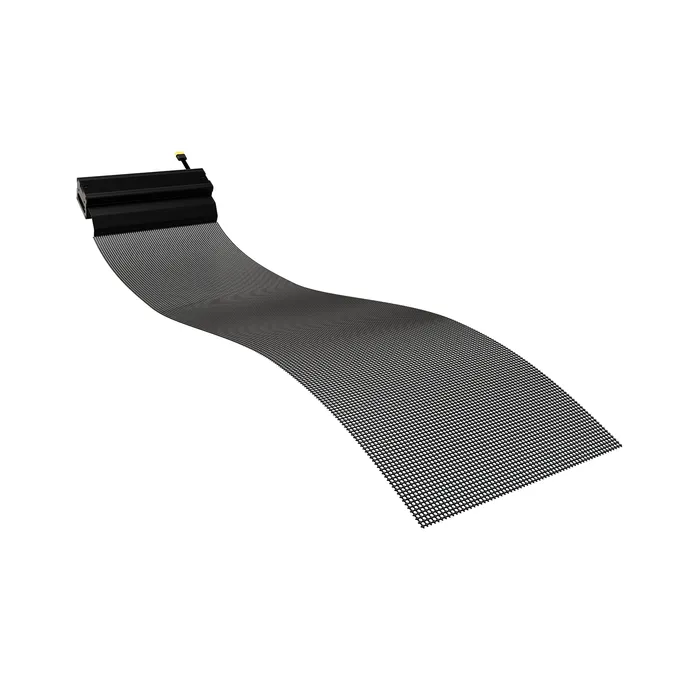

Flexible bendable module, best partner for curved and shaped glass
Ultra-lighton 5-6kg/sqm
Lightweight design, weight only 6KG/ ㎡

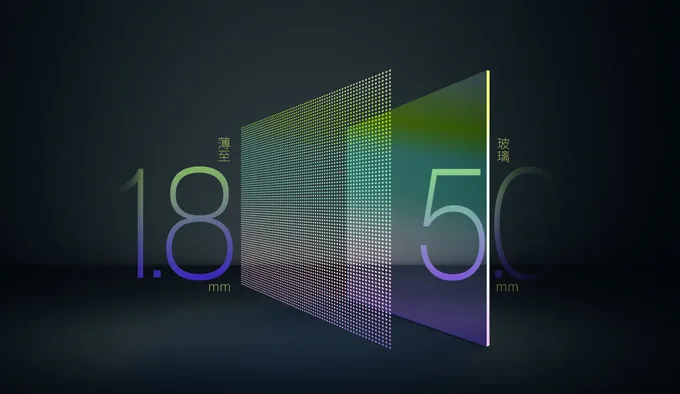

Thin to 1.8mm
Module thickness less than 2MM, Seamless curved surface mounting

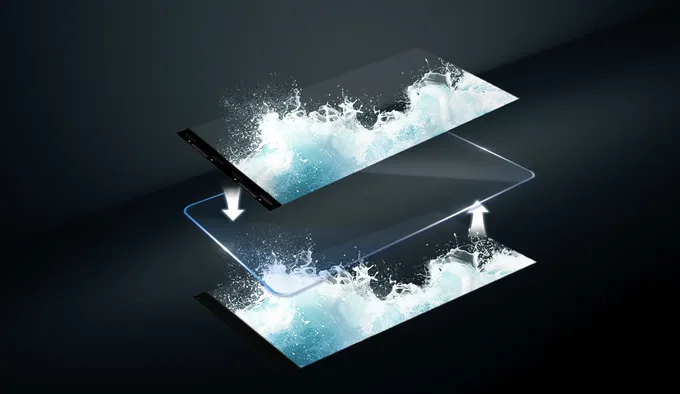

Installs, the convenient promotion maintenance simply
Modular collage on glass front or back
The display module is transparent and invisible, without any obstruction to sight and lighting!
85~95% Visual permeability 85~95%
160,000 pixels per square meter, TV-quality invisible screen
TV-quality invisible screen、Near visual range transparent invisible display
Large area no splicing structure, transparent display accounted for more than 95% of the full screen!
Invisible display panel, seamless large area splicing, full screen transparent without frame
High quality, stable picture, rich and delicate color!
Horizontal and vertical pixels equal spacing, lamp drive integration static scanning, 16bit gray level
Immersive floating imagery, naked-eye AR commercial display experience
High brightness 5000cd/㎡, 9000:1 high contrast
Light 6kg/ ㎡, Thin 1.8mm
Flexible bendable module, best partner for curved and shaped glass
Specification parameters

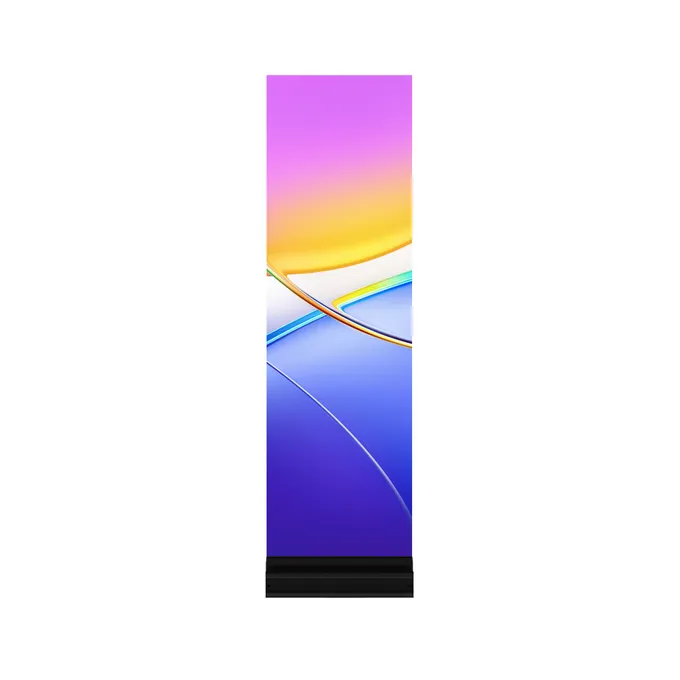

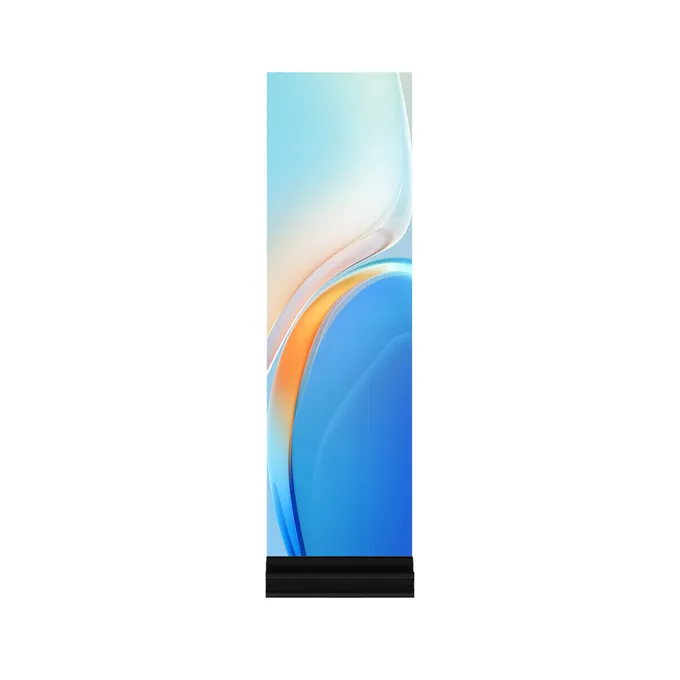

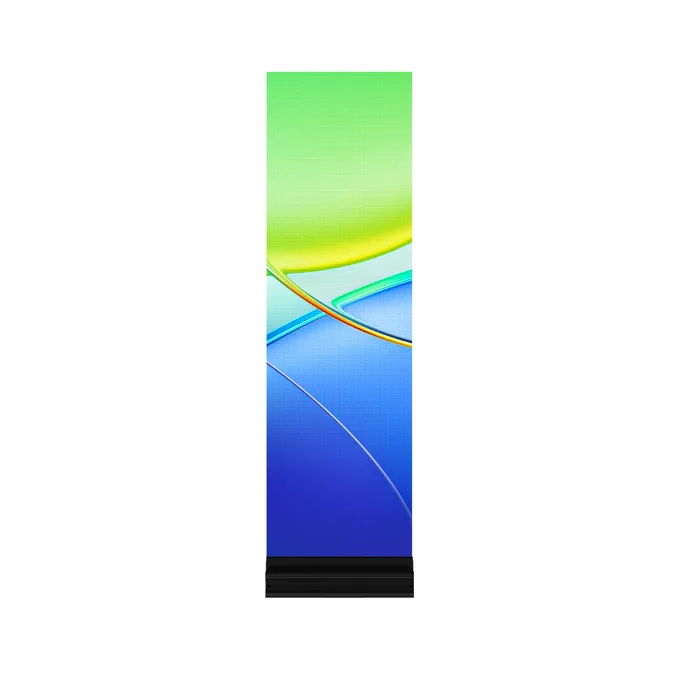

| Model | M2 | M3 | M6 | M10 | ||||||
| Display Dimension(mm) (w*h) | 125x1000 | 125x1175 | 250x1000 | 250x1172 | 250x1469 | 250x1000 | 250x1175 | 250x1475 | 960x1000 | |
| Profile Dimension (mm)(w*h) | 125x1025 | 125x1200 | 250x1025 | 250x1197 | 250x1500 | 250x1025 | 250x1200 | 250x1500 | 960x1000 | |
| Resolution (dot) (w*h) | 50x400 | 50x470 | 64x256 | 64x300 | 64x376 | 40x160 | 40x188 | 40x236 | 96x100 | |
| LED Specification | 1515 | 2121 | 2121 | 2727 | ||||||
| Pixel Pitch (mm) (horizontal / vertical) | 2.5-2.5 | 3.91-3.91 | 6.25-6.25 | 10.0-10.0 | ||||||
| Pixel Density (dot/m²) | 160000 | 65536 | 25560 | 10000 | ||||||
| Transparency Rate | 85% | 92% | 95% | 95% | ||||||
| Brightness(cd/m²) | ≥1200（Black Light） | ≥3000（Black Light） ≥4500（White Light） |
≥2000（Black Light） ≥3000（White Light） |
≥5000（White Light） | ≥4500（White Light） | ≥7000（White Light） | ||||
| Maximum Power Consumption (w/m²) | 865 | 865 | 865 | 865 | 865 | 865 | 865 | 865 | 800 | |
| Average Power Consumption (w/m²) | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 300 | |
| Weight (kg/set) | 0.2 | 0.25 | 0.4 | 0.5 | 0.6 | 0.4 | 0.5 | 0.6 | 8 | |
| Power Box Weight (kg/set) | Type B and D is 1.1kg | Type B and D is 1.1kg | Type B and D is 1.1kg | No External Power Supply Box | ||||||
| Color Temperature(K) | 3000~10000 | 3000~10000 | 3000~10000 | 3000~10000 | ||||||
| Scanning Mode | Light & Driver Integrated, Static Driving | Light & Driver Integrated, Static Driving | Light & Driver Integrated, Static Driving | Static Driving (Single Pixel Single Control) | ||||||
| Frame Rate（Hz） | 60~120 | 60~120 | 60~120 | 60~120 | ||||||
| Lifespan | ≥ 100,000.00 hours | ≥ 100,000.00 hours | ≥ 100,000.00 hours | ≥ 100,000.00 hours | ||||||
| Pixel Configuration | 16bit | 16bit | 16bit | 16bit | ||||||
| Input Voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | ||||||
| Working Voltage for Module | DC4.2V ±0.2V | DC4.2V ±0.2V | DC4.2V ±0.2V | DC4.2V ±0.2V | ||||||
| Working Temperature | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | Temperature -20℃ ~50℃ | ||||||
| Working Humidity | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) | Humidity 20%RH ~ 85%RH (Without Condensation) | ||||||
| Storage Temperature | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | Temperature -20℃ ~60℃ | ||||||
| Storage Humidity | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) | Humidity 10%RH ~ 85%RH (Without Condensation) | ||||||
| Protection Degree | IP20 | IP20 | IP20 | IP20 | ||||||
| Installation Method | LED side glued、 PCB side glued、Hanging Up | LED side glued、 PCB side glued、Hanging Up | LED side glued、 PCB side glued、Hanging Up | Fixed Installation、Hanging Installation | ||||||
| Installation Environment | Indoor | Indoor | Indoor | Indoor | ||||||
| Module Packing Specification (16pcs per box)(mm) |
L1295*W335*H270 | L1295*W335*H270 | L1570*W335*H270 | L1295*W335*H270 | L1570*W335*H270 | Single Cabinet Packaging | ||||
| Power Box Packing Specification (30pcs per box)(mm) |
L1595*W335*H270 | L1295*W335*H270 | L1295*W335*H270 | L1000*W960*H55 | ||||||
| Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice. | ||||||||||
