SERVICE

Download | Installation Video | FAQ

Download

Product Brochure

Series M – Brochure.pdf

Series A – Brochure.pdf

Product Manual

All-in-One Machine (Colorlight A100) – Specification Sheet.pdf

All-in-One Machine (NovaStar TB40) – Specification Sheet.pdf

Mounting on Glass – Specification Sheet.pdf

Installation Video

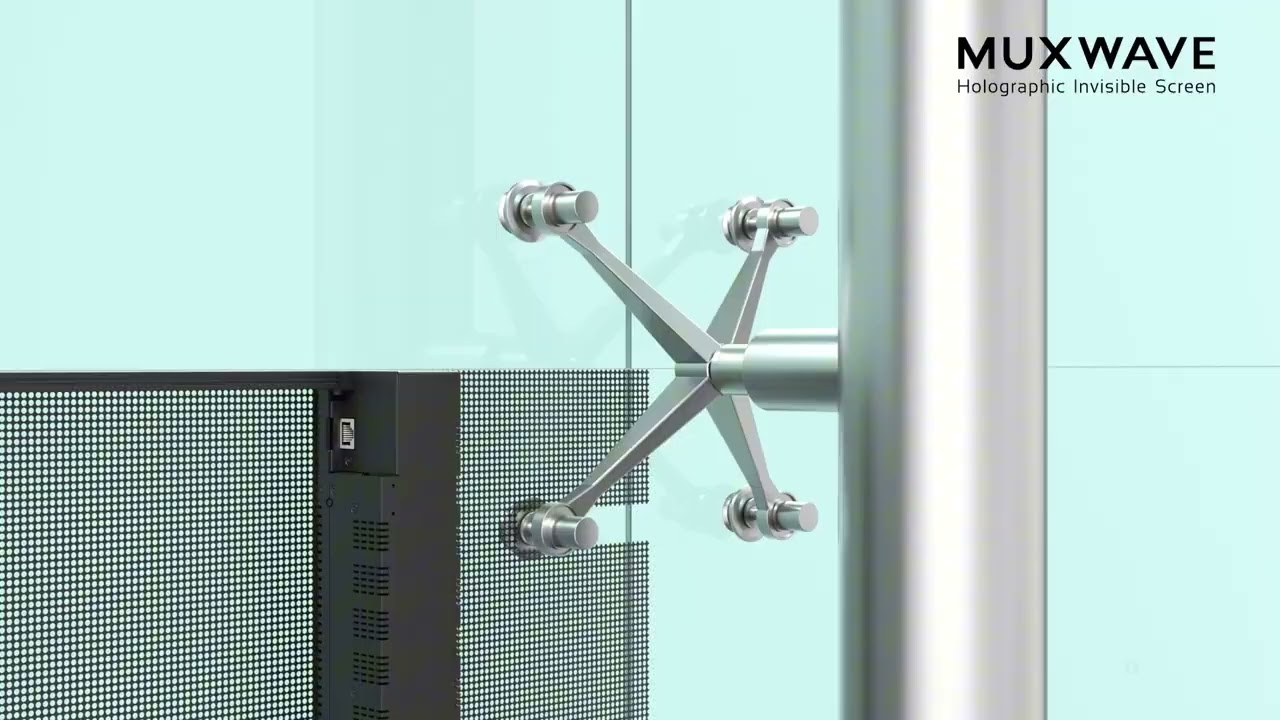

Installing MUXWAVE S-Series Enclosures on Glass Curtain Walls.

Install MUXWAVEholographic invisible screens in the office

FAQ

How is the installation to the glass ?

You can check the product documentation, check the installation videos above, or find more information in our video center

What is the maximum width and height for your led screen?

We use LED modules without frames or cabinets to build the LED screen. There is no limitation on the screen width or height. However, in one situation, if the screen height exceeds 4.22 m, we will provide a joint bar, which should be installed at the joint every 4.22 m of height.

Can the led screen be installed on the inner side of the glass?

Yes, you can. Our LED screen can be mounted on either the exterior or interior side of the glass.

Can Muxwave’s product be used outdoors?

Our product is with high brightness so it can be used for outdoor, but should avoid the water or rain, not really an outdoor product.

What is the meaning of “keel-less module design” for sharper visual treatment at true 16-bit grey scale performance?

The keel-less module design means our transparent LED screen is built using only the LED modules, without any frames or bars. With no visible structure, it achieves true and complete transparency.

What is the meaning of static driving?

For our product, each pixel is driven by each IC, we are using 65536pcs IC for 1sqm of our M3, you know there are 65536 pixels for 1sqm of our M3, so these 65536 pixels are driven by these 65536pcs IC one by one, it can achieve very high refresh rate and grey scale, so the images on the screen looks much more sharp, fluent, vivid and attractive. In addition, if one pixel dead, it will not affect the other pixels’s working under this technology.

Can you use Novastar as the control software?

Yes, no problem.

What is the refresh rate for the screen?

Much more than 3840Hz, for our led screen, each pixel is driven by each IC, there are 65536pcs IC used for each sqm if P3.91mm pitch, so the screen’s grey scale and refresh rate is much high.

What type of glue does it use? Can the element/panel be removed easily from the glass after use?

If too many pixels start failing, the entire element or panel must be replaced. It uses transparent patented glue, and the LED modules can be easily removed with the glue reusable. Maintenance is easier than with traditional LED screens—you only need a soldering iron to replace the defective LEDs.

How does this your pixels perform in a extreme heat or cold environment?

I mean it this is installed against a window facing out to the street we will have +30°C in the summer plus the sun shines directly against the window. In the winter we -30°C outside and the window inner surface will also be very very cold. We have already made the testing for our screen when it’s working at +100°C and -30°C, the light board of our screen can still work well, and the screen can be installed on the outer side of the window or the inner side of the window, it can be decided based on the requirements.

Have you tested the plastic and pixels you use in high UV-radiation environment and can it still work reliably for a long time?

Already done, and the answer is yes.

Is it possible to have the element/panel with transparent plastic instead of black as a option?

No transparent plastic but the other color like white color can be customized.
